Hubert Haas

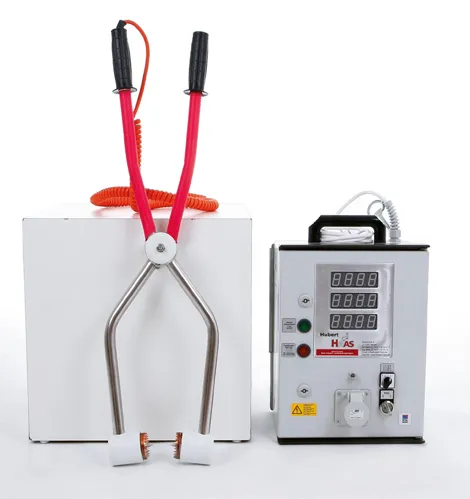

Hubert Haas Stunning Device TBG 200

Electrical animal-welfare stunning device complying with EC Regulation No. 1099/2009 and the national implementing provision for the animal protection slaughter regulation, as well as current VDE regulations. Made in Germany, it offers humane stunning with a rapid current increase to max. 2.3 A, integrated V/A/Hz displays, an integrated data recorder for animal-welfare-relevant parameters and data analysis software. The device can also be used for emergency killing in the event of epidemic outbreaks.

Key features

• Rapid current increase in the 1st second to max. 2.3 A
• Visual and audible signal for minimum stunning time not reached
• Visual and audible signal of minimum stunning time reached
• Visual and audible signal for minimum current 1.3 A (for pigs) or 1.0 A (for sheep) not reached within the 1st second and/or not maintained throughout stunning time
• Integrated displays with voltage, current and frequency (V/A/Hz)
• Combined brain-heart stunning possible
• 3 stunning programmes for different animal species/sizes and operating modes
• Plastic casing or optional stainless steel casing
• Electronic high frequency with optimised stunning parameters for high meat quality
• Powerful 2.3 A transformer
• Integrated data recorder for animal-welfare parameters: current (A), voltage (V), frequency (Hz) and minimum stunning time (sec)
• USB stick for data logging/transfer
• Stainless steel stunning tongs with coiled cable, special handles and copper electrodes with centre spike for secure contact
• Data analysis software with daily/monthly statistics and per-animal data as graph, scale or table
• Optional pneumatic tongs (trap/restrainer stunning for pigs and sheep, capacity approx. 180 pigs/hour, available in 2 sizes)
• Optional stunning fork (trap/restrainer stunning, switchless operation)
