Hubert Haas

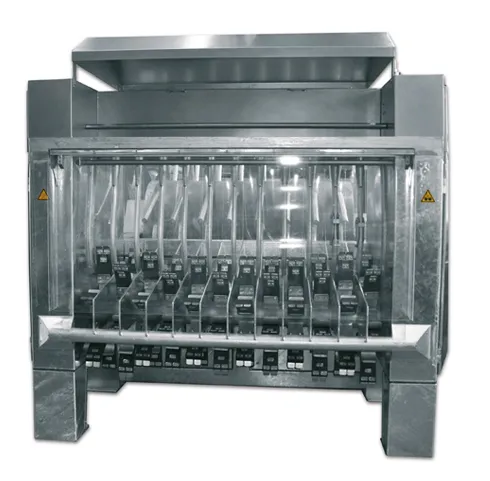

Hubert Haas Goliath Dehairing and Singeing Machine

Heavy-duty single-chamber dehairing and singeing machine with shaving roller, suitable for dehairing pigs and sows at a rate of approx. 50-120 pigs/hour and boars/sows weighing up to approx. 400 kg. The machine exterior is a hot-dip galvanised design with a built-in control cabinet and a roller fitted with special scraper paddles with metal shavers. A TUV-certified stainless steel flame bridge with 9-12 adjustable burners provides total dehairing, used in combination with a Turn-O-Matic scalding tank.

Key features

• Slaughtering capacity approx. 50-120 pigs/hour
• Max. pig weight approx. 400 kg
• Machine exterior in hot-dip galvanised design
• Built-in control cabinet
• Roller fitted with special scraper paddles with metal shavers
• Dehairing time and machine filling individually adjustable
• Machine frame hot-dip galvanised; doors and central cabinet in stainless steel
• Stainless steel flame bridge mounted on Goliath for total dehairing
• Choice of propane or natural gas, compressed-air operated, 9-12 adjustable stainless steel burners (depending on machine width), TUV certified
• Turn-O-Matic scalding tank for 2.5 to 10 pigs under water
• Scalding tank heating: 40-50 kW electric heater or steam heating option; automatically controlled scalding temperature 59-62 degrees C; circulation pump
