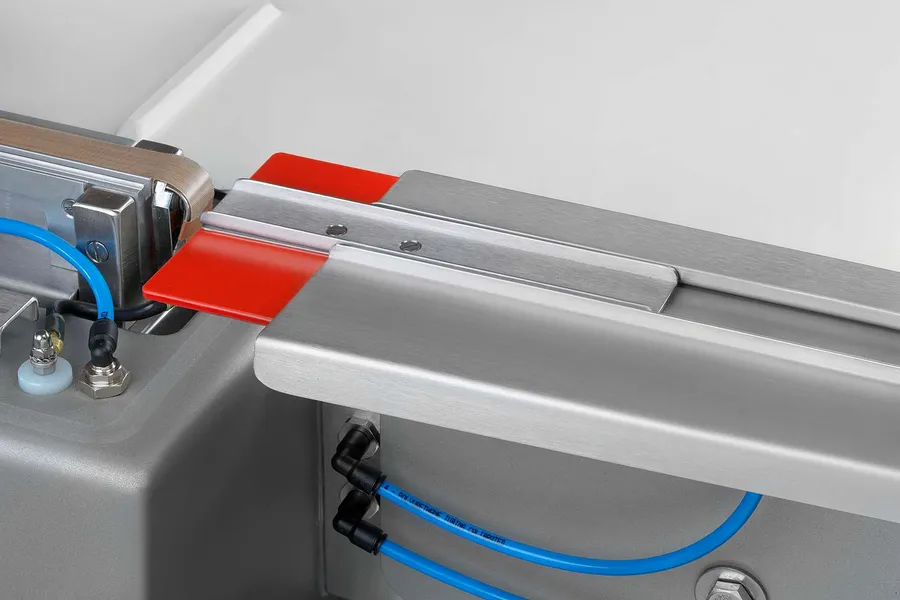

Supervac GK 600 / 610 B Series Belt Chamber Vacuum Machine

The GK 600 / 610 B Series is an automatic belt (conveyorised) chamber vacuum packaging machine for continuous production. It has two 1000 mm sealing bars with 830 mm between the bars and reaches up to 3 cycles per minute at a final vacuum down to 1 mbar. Sealing bar heights of 15, 35, 55 and 75 mm are available, with optional automatic height adjustment from 15 to 80 mm, and residual bag trimming by perforated cut-off or rotary knife. Matching shrink technology: AT15 and AS860.

Key features

• Robust stainless steel construction for maximum durability
• Double bi-active sealing bars for firm, reliable seals
• Air cushion in the vacuum chamber for an optimised evacuation process
• Various options available for perfectly trimming the bag overhang
• Multiple sealing bar heights to suit the product
• Touchscreen for simple, clear operation
• Various vacuum chamber heights for optimal product adaptation
• Uses proven electronic and pneumatic components
• Choice of optimised BUSCH vacuum pump combinations
• Hygienic design, easy to clean
• Control cabinet heating
