Finova SliceFil-660 Automatic Slicer

The SliceFil range of automatic slicers stands out for its high performance and variety of use, indicated in industries of large production of sausages, ham or cheese. The SliceFil-660 stands out for its automated product loading and its advanced system of up to 3 independent grippers that provide high weight accuracy in each of the sliced packages.

Key features

• Cutting system by orbital and circular rotation with independent servomotors, guaranteeing precise cutting and portioning of a wide variety of products
• Automatic loading module for fast and efficient product feeding with minimal operator intervention; loading conveyor length 1,200 mm
• Pick configuration with 3 independent grippers, each with its own servomotor for accurate cutting of parallel products using dynamic weighing information; independently adjusts slice thickness per bar to maximise correct-weight portions and minimise waste
• Picking configuration with 2 independent grippers, each with its own servomotor for accurate cutting of parallel products using dynamic weighing information
• Picking configuration with 1 gripper that adjusts slice thickness from the stick product to maximise correct-weight portions
• Pneumatically operated vertical and horizontal clamping devices with automatic adjustment
• Automatic evacuation of front and rear residual portions
• Portioning belt with automatic vertical tilting up to 70 mm high
• Detection and auto-correction of incomplete packs

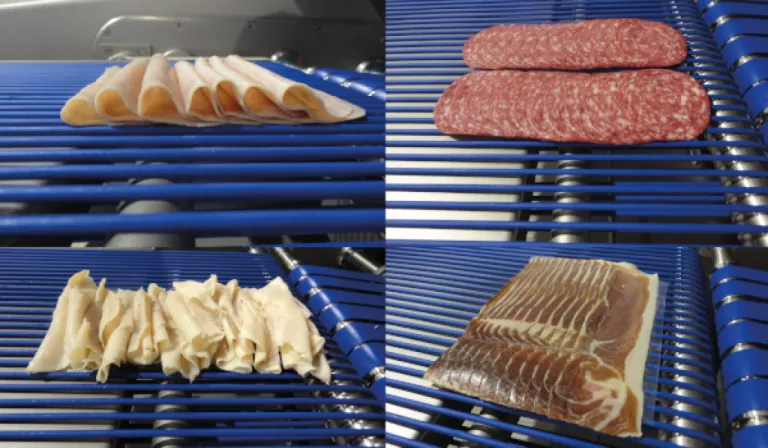

• Portioning designs: staggered, endless staggered, staggered with paper interlayer (optional), multiple parallel rows, stacked rows, vertical stacking, staggered stacking, stacked with interlayer (optional), shaved-meat chiffonade (optional)
• Simple and intuitive adjustment of machine settings via the 21" touch screen
• TCP/IP connection for remote monitoring of machine operation
• Hygienic and safe design with easy access to key parts for regular cleaning and maintenance
• Robust construction made of AISI-304 stainless steel
• Machine built in accordance with European Directive 2006/42/EC
• Optional (not included): paper interleaver
• Optional (not included): slicing device for folding slices
• Optional (not included): dynamic weighing scale up to 3 ways
• Optional (not included): discriminating belt tilting for discarding portion on upper or lower belt
• Optional (not included): discriminating belt on the side
• Optional (not included): upper belt of rejected portions for manual verification of 2000 mm
• Optional (not included): belt for delivering portions to the thermoformer manually, 3000 mm
• Optional (not included): belt to deliver portions to automatic thermoformer (according to study)
• Optional (not included): 3D volumetric scanner module
