Finova SliceFil-310 Angle Slicer

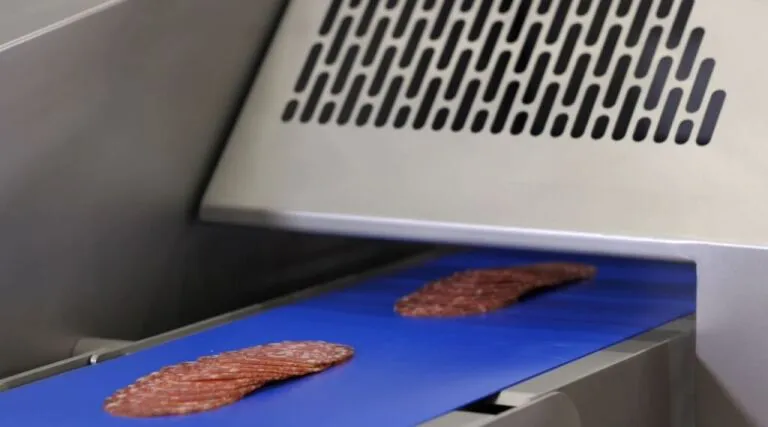

The SliceFil-310 automatic slicer stands out for its ease of use, compact size, high performance and variety of use, indicated for medium production industries of cooked and cured sausages, hams and cheeses. It is distinguished by its 48° angle cut combined with a movement interpolation system, offering innovative product presentations. The product is loaded manually and supported by a clamp; the cut is made by a circular blade with orbital movement, placing the product in stacked portions, staggered portions or other presentations on the synchronised infeed conveyor belt.

Key features

• Loading of the product on a plastic band that avoids friction damage during cutting
• Manually operated product grippers
• Cutting system with circular blade and independent orbital and rotation speed adjustment
• Pneumatically adjustable top and side tampers with adjustable pressure
• Product loading gate with gas pistons
• Machine driven by servomotors
• Electromechanical safety systems on gates and protections with mechanical blocking
• Number of slices in each portion can vary according to needs, as well as the length of the portions
• Portion stacking height up to 20 mm
• Hygienic design for easy cleaning with quick access to main functional elements for easy maintenance
• Robust construction made of AISI-304 stainless steel
• Machine built according to the European Directive 2006/42/CE
• Easy adjustment of all cutting parameters through the integrated 10" touch screen with intuitive menus and icons
• Allows storage of up to 50 recipes
• Optional (not included): motion interpolation device (up to 120 mm)
• Optional (not included): pneumatic product gripper
• Optional (not included): special output conveyor length
