Promarks Vac

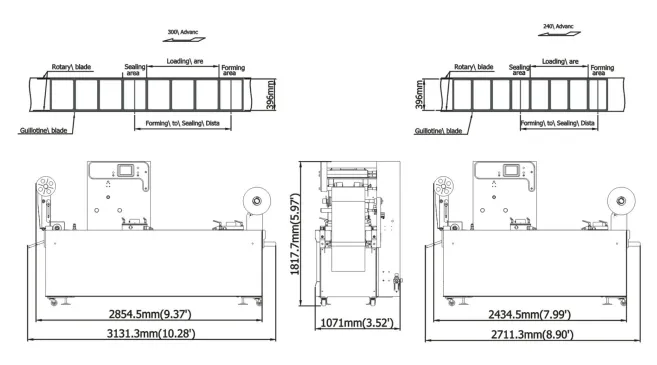

PRS-420 Mini Series Rollstock Machine

The PRS-420 Mini is a thermoforming (rollstock) vacuum packaging machine equipped with a Busch 63m³/hr vacuum pump. It uses quick compressed-air forming, PLC/7" touch-screen control, a servo-driven 5/8" stainless steel conveyor chain and water-cooled tooling, with three loading stations, two independent tool lifting stations and a maximum forming depth of up to 80mm. The welded stainless steel frame, stainless steel loading area and adjustable legs make it suited to continuous production.

Key features

• Quick compressed-air forming
• Auto chain lubricating system
• Busch 63m³/hr pump
• Film core: 75mm
• Top film width: 406 (+1,-0) mm
• Bottom film width: 424 (+2,-0) mm
• Film index: 240mm
• Air cylinders for sealing
• PLC / 7" touch-screen control with user-friendly interface
• Cross-cut guillotine (1)
• Rotating knives (1 set)
• Servo motor for chain
• 5/8" stainless steel conveyor chain
• Discharge roller conveyor
• Water-cooled tooling
• Dedicated top and bottom vacuum valves
• Protection guard with electronic interlock system and remote diagnostic
• 3 loading stations
• Max. forming depth up to 80mm
• 2 independent tool lifting stations
• Easy changeover of sealing plates
• Welded stainless steel frame, stainless steel loading area and adjustable legs
• Heated electrical panel
• Trim rewinder
• Optional: die set, film index 300mm, perimeter sealing, extra cross-cut guillotine, motorized exit conveyor, water cooling chiller, gas injection system (MAP), product support rails, printing system, photo cell for pre-printed film, loading grill, spare parts kit
