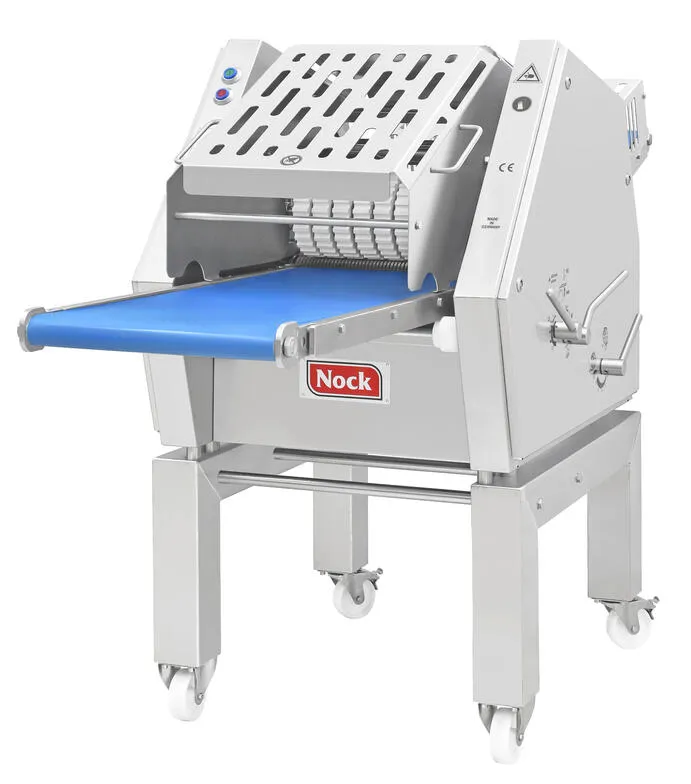

Nock Cortex CB 519 · CB 619 · CB 719 Derinder

Automatic conveyorised meat derinding machine for industrial application, with a further developed pressure system geometry that dynamically adapts to products of variable height. It is a technical further development of the proven CB 504 / CB 604 / CB 704 models, available as a mobile model with accessibility for skin removal from the sides or as a suspended version with plant specific adaptation. It gives perfect derinding of all flat and high pieces such as belly, back fat, rind cut to size, partial cuts and shoulder.

Key features

• Infeed conveyor and discharge conveyor
• Compact casing (new design) with sloping tops and underframe open on all four sides
• Blade gap infinitely adjustable; blade holders designed for blades 518/618/718 x 22 x 0.7 mm
• Blade fastened from above with screws for fast and safe blade change; blade holder can remain in the machine for cleaning and is adjustable upwards
• Spring suspended blade holder for perfect derinding results
• Newly developed pressure system geometry with spring identification for dynamic adaption to variously high pieces; preadjustment of height
• New transport roller geometry; tooth roller with scraper comb operable from the outside
• NOCK POWER PLATES® for robustness, service friendliness and smooth, easy to clean surfaces
• Access protection from front and behind via NOCK EASY-FLOW® safety covers
• Conveyors can be removed within seconds without any tools
• Lockable castors, stainless steel, stainless steel bearings
• Options: discharge conveyor for removed skin, NOCK ACTIVE SKIN GRIPPER® (ASG), lateral discharge conveyor for removed skin with separate drive, suspended version with plant specific adaption, plastic modular belts, inflated pressure balloon, transfer plate for passage without processing, cleaning trolley
